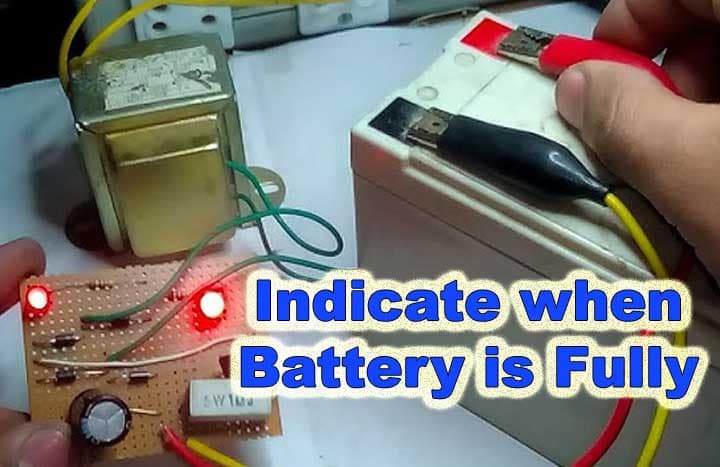

HOW TO MAKE 12V BATTERY CHARGER [indicate when battery is fully charged] Sekhohub.online
In this video I have made a 12V battery charger with a feature to indicate when the battery is fully charged. I have tried to make this video as easy as it could be and used common components. I hope it will be helpful.
Materials for the Project.
- 1X 12V TRANSFORMER
- 4X 1N4007 DIODES
- 1X 1000UF 35V CAPACITOR
- 1X C1383 TRANSISTOR
- 1X 1 OHM 5 WATT RESISTOR
- 1X RED LED
- 1X ORANGE LED
- 1X 2.2 K RESISTORS
- 1X 1K RESISTOR
- PIECE OF VERO BOARD
- SOME JUMPER WIRES
Download Circuit Diagram
