How to Make a 2-Channel Relay Module
Learn how to make a 2-Channel Relay Module with simple components and a clear step-by-step guide. This 2-Channel Relay Module project is ideal for controlling two AC or DC loads easily. Build your own 2-Channel Relay Module using transistors, relays, and basic electronics parts. Understand the complete 2-Channel Relay Module circuit diagram, working principle, and wiring details.
Whether you use Arduino or any microcontroller, this 2-Channel Relay Module can help automate your devices. Explore how the 2-Channel Relay Module works, how to test it, and how to expand it for multiple channels. A complete 2-Channel Relay Module tutorial designed for electronics enthusiasts and hobbyists.
Introduction
A 2-Channel Relay Module is a very useful and commonly used electronic circuit designed to control two independent electrical loads with a single control system. It acts as an interface between low-power control electronics and high-power electrical devices. In simple terms, this module allows a microcontroller, Arduino, or even a simple switch to control two high-voltage or high-current devices safely.
The 2-Channel Relay Module works on the principle of electromagnetic switching. When a small current flows through the transistor or driver stage, it energizes the relay coil, which in turn switches the connected load. Each relay channel works independently, allowing you to operate two devices such as lamps, motors, or appliances simultaneously.
In this article, we will learn how to build a 2-Channel Relay Module step-by-step, understand its working principle, list all required components, and explore its practical applications in real-world automation systems.
Materials for the Project
| No. | Component Name | Quantity | Description / Value | Buy Link |
|---|---|---|---|---|
| 1 | 3-Pin Terminal Block | 2 | For input/output load connection | Buy Here |
| 2 | BC547 NPN Transistor | 2 | Used to drive the relay coil | Buy Here |
| 3 | 1N4007 Diode | 2 | Flyback diode to protect transistor | Buy Here |
| 4 | 1K Resistor | 6 | Used for base current limiting and LED biasing | Buy Here |
| 5 | LED (Red/Green) | 2 | Indicator LEDs for relay status | Buy Here |
| 6 | 6V Relay (SPDT) | 2 | Main switching component, 6V coil | Buy Here |
| 7 | PC817 Optocoupler | 2 | Provides electrical isolation between control and relay section | Buy Here |
Useful Tools
| Tool | Quantity | Purpose / Notes | Click & Buy |
|---|---|---|---|
| Soldering Iron Kit | 1 | For making permanent connections | Click & Buy |
| Solder Wire (60/40, 0.8mm) | 1 | Electrical soldering | Click & Buy |
| Wire Stripper & Cutter | 1 | Stripping jumper wires | Click & Buy |
| Mini Screwdriver Set | 1 | For module and relay terminal screws | Click & Buy |
| Multimeter | 1 | Testing voltages and continuity | Click & Buy |
| Hot Glue Gun (optional) | 1 | Securing components in place | Click & Buy |
| Small Pliers | 1 | Holding and bending wires | Click & Buy |
| Heat Shrink Tubing Set | 1 | Insulating exposed wires | Click & Buy |

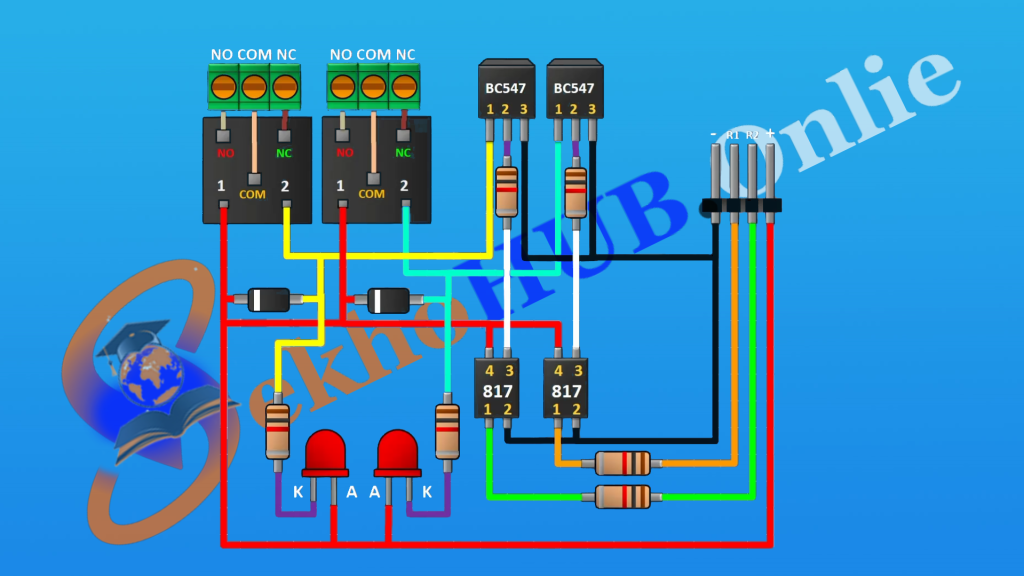

Download Circuit Diagram
Working Principle of 2-Channel Relay Module
The 2-Channel Relay Module works on the principle of electromagnetic induction and optical isolation. It uses a combination of opto-isolators (PC817), transistors (BC547), and electromechanical relays to control two separate loads safely using a low-voltage control signal.
Applications of 2-Channel Relay Module
The 2-Channel Relay Module is one of the most widely used control circuits in electronics, automation, and IoT-based systems. Its dual-channel design makes it ideal for controlling multiple devices simultaneously while maintaining complete isolation from the control circuitry.
Below are some of the most common and practical applications:
1. Home Automation Systems
Used to control electrical appliances like fans, lights, and sockets from a microcontroller or Wi-Fi module.
Helps automate daily household operations using sensors or voice-controlled smart systems such as Alexa or Google Assistant.
2. Arduino and Microcontroller Projects
Frequently used in Arduino, ESP32, ESP8266, and Raspberry Pi projects.
Allows switching of AC or DC devices such as solenoids, lamps, and motors with logic-level control signals.
3. Industrial Control Systems
Used in industrial machines for switching motors, pumps, and solenoids.
Provides isolation between sensitive control circuits and high-power machinery, improving reliability and safety.
4. Smart Agriculture and IoT
Helps automate irrigation systems by switching water pumps, valves, or other electrical devices remotely.
Can be integrated with soil moisture sensors and GSM modules for remote farm control.
5. Test and Measurement Equipment
Employed to control power to test benches, instruments, or power supplies automatically during calibration and testing.
6. Automotive and Robotics Systems
Used for controlling DC motors, lights, and actuators in robotic and automotive projects.
Provides reliable switching between different voltage domains safely.
7. Security and Alarm Systems
Controls sirens, alarm lights, and door locks when triggered by sensors (PIR, smoke, gas, etc.).
Can also activate multiple safety responses simultaneously using two independent relay outputs.
8. Power Management and Energy Monitoring
Used in smart energy-saving systems to disconnect or reconnect loads automatically based on load priority or energy usage.
9. DIY and Educational Projects
Excellent learning tool for students and hobbyists to understand relay switching, optical isolation, and transistor driving circuits.
Easy to prototype and test with breadboards or custom PCBs for educational demonstrations.
10. Remote Switching Systems
Used with RF modules, Bluetooth, or Wi-Fi-based systems for remotely turning ON/OFF multiple devices.
Ideal for remote lighting, fan control, or appliance management applications.
FAQs (Frequently Asked Questions)
Q1. What is a 2-Channel Relay Module?
A 2-Channel Relay Module is an electronic circuit that allows you to control two independent high-voltage or high-current devices using low-voltage signals. Each relay operates separately and provides electrical isolation through optocouplers.
Q2. Can I use this module with Arduino?
Yes, it’s fully compatible with Arduino, ESP32, ESP8266, or any microcontroller that outputs 3.3V or 5V logic signals. The PC817 optocoupler ensures safe isolation between the microcontroller and high-voltage devices.
Q3. What voltage relays does this module use?
This design uses 6V relays, but you can replace them with 5V or 12V relays depending on your control voltage supply. Ensure the transistor and diode ratings match the relay coil voltage.
Q4. Can I control AC appliances with this module?
Yes. The module’s relay contacts can switch AC loads such as lamps, fans, and small appliances safely, while keeping the control circuitry isolated.
Q5. How does the optocoupler help?
The PC817 optocoupler electrically isolates the low-voltage input side from the high-voltage relay output, protecting your microcontroller and preventing voltage spikes from damaging sensitive components.
Q6. How do I know when the relay is ON?
Each channel has an LED indicator. When the corresponding relay is energized, the LED lights up, showing that the relay is active.
Q7. Can both channels operate simultaneously?
Yes, both relays work independently. You can trigger one or both channels simultaneously without interference.
Q8. What protection does the module have?
Each relay has a flyback diode (1N4007) to prevent voltage spikes caused by the relay coil. This protects the transistor and optocoupler from damage.
Conclusion
The 2-Channel Relay Module is a versatile, practical, and essential component for electronics and automation projects. Its combination of optical isolation, transistor switching, and LED indicators makes it safe, reliable, and easy to integrate with microcontrollers like Arduino.
With this module, you can control two independent electrical loads—AC or DC—safely, while protecting your control circuits from voltage spikes and interference. The dual-channel design allows simultaneous or individual operation, making it perfect for home automation, industrial applications, robotics, smart agriculture, and educational projects.
By following this guide, you now understand the components, working principle, circuit connections, and practical applications of a 2-Channel Relay Module. It is a solid foundation for building more complex multi-channel automation systems in the future.
