How to make base treble control circuit [Used with Any Amplifier] |

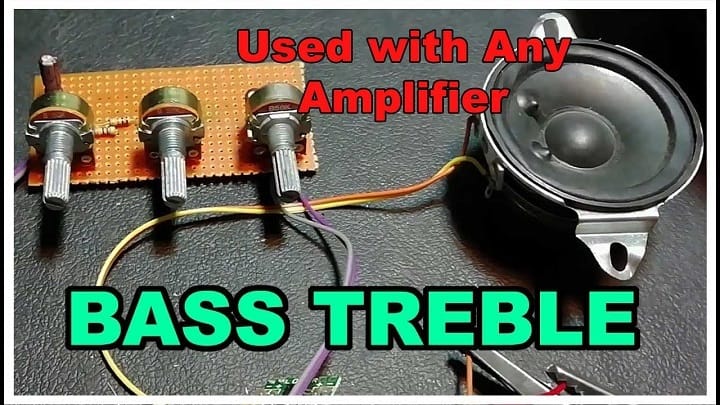

Hi friends, in this POST I have made a very simple bass, treble, and volume control circuit. I have used very common components. This circuit can be used with any amplifier. I have tested it with a 5V amp and a 12V amp; it worked fine with both. I hope this video will be helpful. Please like and share.
Materials for the Project.
- 3x 50k variable resistors
- 2x 4.7 uF capacitor
- 1x 0.1 uF capacitor
- 2x nF capacitor
- 1x 1nF capacitor
- 2x 470-ohm resistors
- 1x 10K resistor
- vero board
- jumper wires
Download Circuit Diagram
