Police Flasher Light Circuit Using CD4060 Easy Stap
Build your own Police Flasher Light project using the CD4060 timer IC and basic electronic components. This detailed guide on the Police Flasher Light circuit explains how to design, assemble, and test a working Police Flasher Light that simulates real flashing patterns. Learn about the working principle of the Police Flasher Light, component selection, and timing configuration using CD4060.
The Police Flasher Light is ideal for DIY enthusiasts and electronic learners to understand frequency division and LED flashing techniques. Follow the step-by-step instructions to make a reliable Police Flasher Light on a breadboard or PCB. With this project, you’ll gain hands-on experience in building a functional Police Flasher Light circuit that’s compact, efficient, and easy to modify for other applications.
Introduction
A Police Flasher Light is a popular electronic project that replicates the flashing red and blue lights seen on emergency vehicles. These lights alternate at specific intervals, creating a recognizable and attention-grabbing pattern. In this project, we’ll design and build a simple yet effective Police Flasher Light circuit using the CD4060 timer IC, which serves as the heart of the system.
Materials for the Project
| No. | Component Name | Quantity | Description / Function | Buy Link |
|---|---|---|---|---|
| 1 | CD4060 Timer IC | 1 | 14-stage ripple counter with built-in oscillator; generates flashing pulses | Buy Link |
| 2 | LED (Red) | 6 | Indicates one side of the police light flashing | Buy Link |
| 3 | LED (Blue) | 6 | Indicates the alternate flashing side | Buy Link |
| 4 | Capacitor (100nF) | 1 | Sets the oscillator timing frequency for CD4060 | Buy Link |
| 5 | Resistor (82KΩ) | 1 | Works with capacitor to determine blinking rate | Buy Link |
| 6 | Jumper Wires | As required | For interconnections on breadboard or PCB | Buy Link |
CD4060 Timer IC Pinout.
| Pin No. | Pin Name | Description |
|---|---|---|
| 1 | Q12 | Output of the 12th binary stage (frequency-divided output). |
| 2 | Q13 | Output of the 13th binary stage (used for LED flashing output). |
| 3 | Q14 | Output of the 14th binary stage (can be used for longer delay timing). |
| 4 | Q6 | Output of the 6th stage (provides faster frequency division). |
| 5 | Q5 | Output of the 5th stage (can be used for other timing purposes). |
| 6 | Q7 | Output of the 7th stage. |
| 7 | VSS (Ground) | Connected to circuit ground or negative terminal of power supply. |
| 8 | OSC IN (Pin 9) | Connected to the external RC network for oscillator frequency input. |
| 9 | OSC OUT (Pin 10) | Provides feedback to form the RC oscillator with resistor and capacitor. |
| 10 | OSC RES (Pin 11) | Connected to the timing resistor (R) and capacitor (C). |
| 11 | RESET (Pin 12) | Resets the internal counter to zero when driven HIGH. |
| 12 | Q4 | Output of the 4th stage. |
| 13 | Q3 | Output of the 3rd stage. |
| 14 | Q2 | Output of the 2nd stage. |
| 15 | Q1 | Output of the 1st stage. |
| 16 | VDD (Power Supply) | Connected to +5V to +15V DC power source. |
Important Notes:
The can operate on voltages ranging from 3V to 15V.
The oscillator frequency is determined by the external resistor (R) and capacitor (C) connected to pins 9, 10, and 11.
The RESET pin (Pin 12) must be connected to ground (LOW) during normal operation.
The output pins (Q4–Q14) divide the input frequency by 2⁴ to 2¹⁴ times, providing a range of timing options.

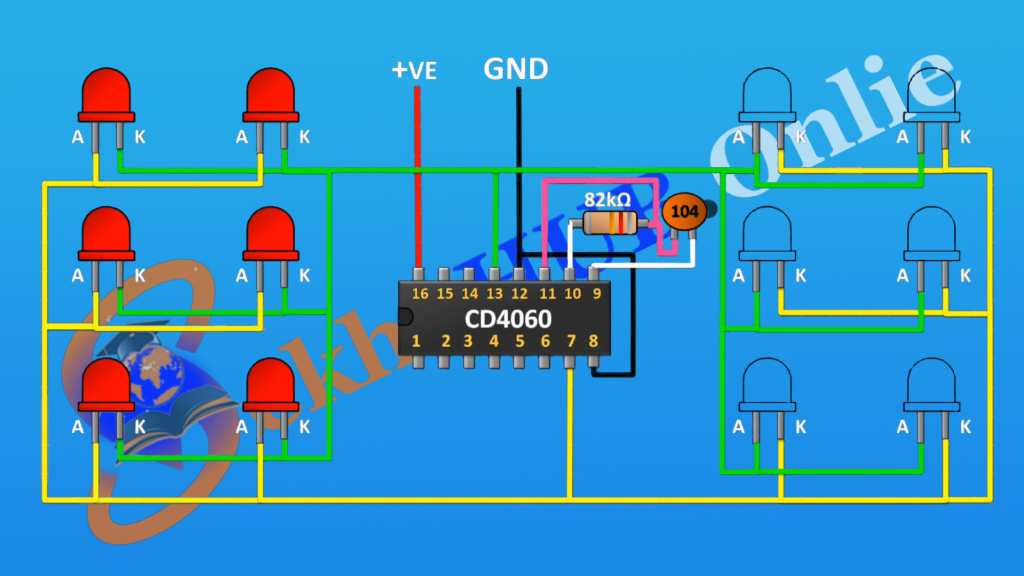

Download Circuit Diagram
Applications of Police Flasher Light Circuit
The Police Flasher Light circuit using the CD4060 timer IC is simple but versatile. It can be used in a variety of practical and educational projects where alternating or blinking light patterns are needed. Below are some common applications:
1. Educational Electronics Projects
Ideal for school or college-level electronics experiments.
Helps students understand the concept of frequency division, timing circuits, and LED driving.
Demonstrates practical use of the CD4060 oscillator and counter stages.
2. DIY Hobby Projects
Can be built easily on a breadboard or a small PCB.
Perfect for electronics enthusiasts who enjoy making visual and light-based circuits.
Allows modification of flashing speed by changing resistor and capacitor values.
3. Model Vehicle Lighting
Useful for model police cars, ambulances, or emergency vehicles.
The alternating red and blue LED flashes realistically mimic real emergency light patterns.
4. Warning or Indication Systems
Can be used in machinery or control panels as a warning indicator.
Alternating flashes can indicate different statuses or alerts in industrial systems.
5. Decorative or Festive Lighting
Suitable for stage decoration, mini light shows, or festive lighting setups.
Flash speed and pattern can be customized to create unique light effects.
6. Timing and Frequency Demonstrations
Helpful in laboratories for studying frequency division and timing control using CD4060.
Can serve as a visual frequency output tester with LEDs.
Frequently Asked Questions (FAQs)
Q1. What is the function of the CD4060 in the Police Flasher Light circuit?
The CD4060 timer IC works as an oscillator and frequency divider. It generates timing pulses that control the ON/OFF switching of LED groups, producing the alternating flashing pattern typical of a Police Flasher Light.
Q2. How can I change the flashing speed of the LEDs?
You can change the flash rate by adjusting the resistor (82KΩ) or capacitor (100nF) values connected to the oscillator pins of the CD4060.
Increasing the resistance or capacitance slows down the blinking speed.
Decreasing them increases the blinking rate.
Q3. What power supply voltage is suitable for this circuit?
The CD4060 operates within 3V to 15V DC, but for this project, a 5V to 9V DC power supply is recommended for stable LED brightness and IC performance.
Q4. Can I use other LED colors instead of red and blue?
Yes, you can use any LED color combination—such as green and yellow or white and orange—depending on your application. However, red and blue provide the authentic look of a Police Flasher Light.
Q5. Is this circuit suitable for automotive use?
While the circuit works perfectly on low-voltage DC systems, it’s best used for model displays or DIY demonstrations. For real automotive use, a properly rated driver circuit and regulated power source are required.
Q6. Can I make this circuit on a PCB?
Absolutely. Once tested on a breadboard, you can design a small PCB layout to make the Police Flasher Light more compact and durable for permanent installation.
Q7. Why are there multiple LED outputs in this project?
The CD4060 provides multiple frequency outputs through its divider stages. You can use different outputs (Q4–Q14) to control several LED groups with various blinking rates, allowing creative light patterns.
Conclusion
The Police Flasher Light project using the CD4060 timer IC is an excellent example of how digital counters and oscillators can be applied in visual electronic designs. By using just a few components a resistor, a capacitor, and LEDs you can create an alternating flashing pattern that resembles real emergency lights.
This simple circuit is not only a fun DIY project but also a great way to learn the principles of timing, frequency division, and LED control. With minor modifications, it can be adapted for model cars, indicators, or creative light effects.
Building this Police Flasher Light will help you gain practical experience with the CD4060 IC and improve your understanding of timing-based electronic circuits.
