How to Make a Simple MP3 Player Using DFPlayer Mini Module
This MP3 player project uses the DFPlayer Mini to play MP3 files with simple wiring. Learn how to make an MP3 player using DFPlayer Mini with step-by-step instructions, BOM, circuit diagram, and FAQs. This MP3 player tutorial explains the DFPlayer Mini pinout, setup, speaker connection, push button control, and SD card usage for making an MP3 player.
Introduction
Audio playback projects are among the most exciting DIY builds for electronics enthusiasts. Whether you are a beginner or an experienced engineer, making your own MP3 player is a rewarding project.
In this tutorial, we will build a standalone MP3 player using the DFPlayer Mini module. This small and affordable module comes with a built-in MP3 decoder, amplifier, and micro SD card reader, making it ideal for creating compact music players, talking devices, and sound-triggered projects.
By the end of this article, you’ll understand:
How the DFPlayer Mini works
How to wire up speakers and push buttons for playback control
How to load MP3 files onto the SD card
Step-by-step instructions for building a functional MP3 player
Materials for the Project
| Component | Specification | Quantity | Buy Link |
|---|---|---|---|
| DFPlayer Mini Module | MP3 decoder with amplifier | 1 | Buy Here |
| Speaker | 8Ω, 1W or 3W | 1 | Buy Here |
| Push Buttons | Momentary push switch | 3 | Buy Here |
| Resistor | 33kΩ, 1/4W | 1 | Buy Here |
| Terminal Block | 2-pin screw terminal | 1 | Buy Here |
| Micro SD Card | 1–16 GB (FAT32 format) | 1 | Buy Here |
| Power Supply | 5V DC (USB or adapter) | 1 | Buy Here |
| Jumper Wires | Male-to-female / Male-to-male | As needed | Buy Here |
Useful Tools
| Tool | Quantity | Purpose / Notes | Click & Buy |
|---|---|---|---|
| Soldering Iron Kit | 1 | For making permanent connections | Click & Buy |
| Solder Wire (60/40, 0.8mm) | 1 | Electrical soldering | Click & Buy |
| Wire Stripper & Cutter | 1 | Stripping jumper wires | Click & Buy |
| Mini Screwdriver Set | 1 | For module and relay terminal screws | Click & Buy |
| Multimeter | 1 | Testing voltages and continuity | Click & Buy |
| Hot Glue Gun (optional) | 1 | Securing components in place | Click & Buy |
| Small Pliers | 1 | Holding and bending wires | Click & Buy |
| Heat Shrink Tubing Set | 1 | Insulating exposed wires | Click & Buy |
Understanding the DFPlayer Mini Module
The DFPlayer Mini is the heart of this project. It is a low-cost MP3 decoder that supports:
Micro SD cards (up to 32 GB, formatted in FAT16/FAT32)
MP3 and WAV file formats
Built-in 3W mono amplifier (suitable for 8Ω speakers)
Serial control via Arduino or direct key/button control
Pinout of DFPlayer Mini
VCC → Power input (3.2V to 5V)
GND → Ground
SPK1 & SPK2 → Speaker outputs
IO1 & IO2 → Input pins for button control
KEY1, KEY2, KEY3 → Direct key control pins (with resistors)
TX & RX → Serial communication pins (for Arduino control)
For this project, we will use the standalone mode with push buttons, so we don’t need an Arduino.

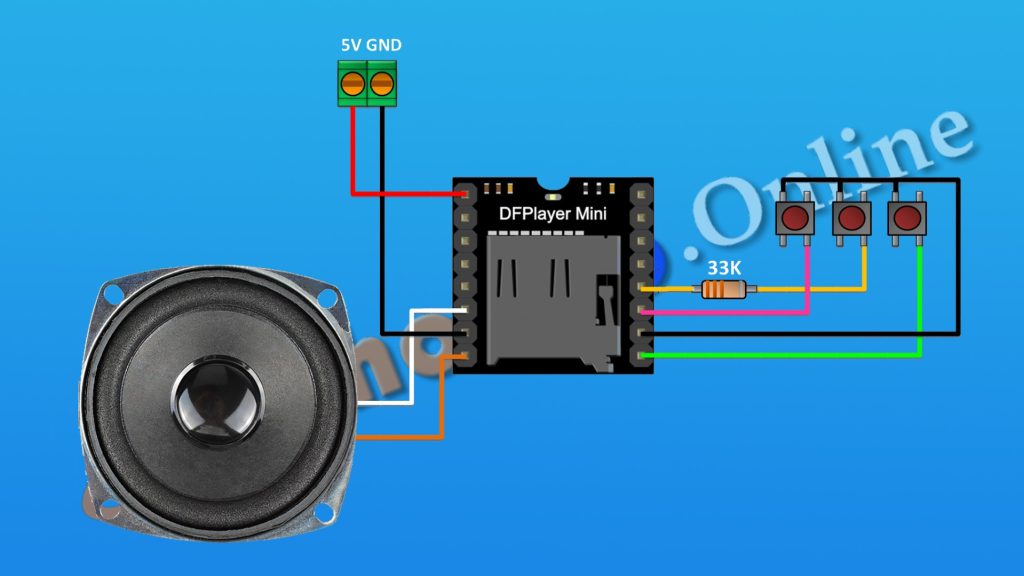

Circuit Diagram Explanation
The wiring for this MP3 player is very straightforward:
Power Supply
Connect DFPlayer Mini VCC → 5V
Connect GND → Ground
Speaker Connection
Connect SPK1 (Pin 6) → One terminal of speaker
Connect SPK2 (Pin 8) → Other terminal of speaker
Push Button for Play/Next
Connect one side of a push button to IO1 (Pin 11)
Connect the other side to Ground
Push Button with Resistor Control
Connect a 33kΩ resistor to KEY1 (Pin 12)
Connect one side of a push button to the resistor’s free end
Connect the other side of the button to Ground
Additional Button
Connect another push button between IO2 (Pin 9) and Ground
Download Circuit Diagram
Step-by-Step Guide
Step 1: Prepare the SD Card
Format the micro SD card to FAT32.
Create folders or directly copy MP3 files into it.
Make sure filenames are simple (001.mp3, 002.mp3, etc.).
Step 2: Connect the DFPlayer Mini
Wire the VCC and GND first for stable operation.
Use a 5V USB adapter or regulated power supply.
Step 3: Connect the Speaker
Use an 8Ω speaker rated between 1W to 3W.
Connect it directly to SPK1 and SPK2 pins.
Step 4: Wire the Push Buttons
Connect the first button for play/next function.
Connect the second button through a resistor for additional control.
Connect the third button directly to IO2 for alternate functions.
Step 5: Insert the SD Card
Place the micro SD card with your MP3 files into the TF slot of the DFPlayer Mini.
Step 6: Power On and Test
Turn on the 5V power supply.
Press the buttons to play, pause, or change tracks.
Enjoy your DIY MP3 player.
Applications of This MP3 Player
Simple portable music player
Talking toys and greeting cards
Voice-guided machines
Audio playback in alarm or security systems
Sound effects in robotics
FAQs
1. Can I use headphones instead of a speaker?
Yes, but you should use the DAC_L and DAC_R pins for headphone output, not SPK1 and SPK2.
2. What is the maximum SD card size supported?
The DFPlayer Mini typically supports up to 32 GB micro SD cards formatted as FAT16/FAT32.
3. Do I need an Arduino for this project?
No, this tutorial uses standalone mode with push buttons. However, you can use an Arduino for advanced control.
4. Why is my module not playing files?
Check that:
The SD card is formatted correctly
Files are in MP3/WAV format
File names follow the proper sequence (001.mp3, 002.mp3, etc.)
5. Can I add more buttons for control?
Yes, DFPlayer Mini supports multiple key inputs for volume up, volume down, play, pause, next, and previous functions.
Conclusion
Building a DIY MP3 player using the DFPlayer Mini is one of the simplest and most enjoyable electronics projects. With just a few push buttons, a speaker, and an SD card, you can create a fully functional music player. This project is perfect for beginners who want to learn about audio electronics and practical applications of modules.
